Determine, E, 0.1% proof stress, tensile strength, % elongation after failure

0 votes

Maximum force was 13.8kN and final length between gauge warks was 53.35mm



Load (N)                      2,000        4,000     6,000    8,000      10,000     11,000    12,000      13,000

Extension (mm)         0.060         0.110    0.175    0.225       0.285       0.325       0.475        0.58

asked Aug 3, 2014 in PHYSICS by Adam lallana Rookie

1 Answer

+1 vote

Best answer

Calculate the E.

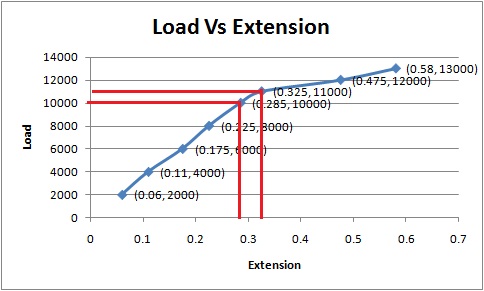

First draw the stress-strain curve:

From the graph:

Modulus of elasticity, E = stress/strain

                                    =10000/0.285

                                    =35087.72 N/mm^2

                                     =35087.72 MPa

0.1% proof stress means 0.1% of E.

σ proof  = (0.1/100) *35087.72

          =35.08 MPa

Calculate the tensile strength.

σy= stress/strain

    =11000/0.325

   =33846.154 N/mm^2

   =33846.143 MPa

Strain at failure is 0.58 mm

Initial gage length ,0.06 mm

% of elongation =( 0.58-0.06)*100/(0.06)

                         =52%



answered Aug 4, 2014 by bradely Mentor
selected Aug 4, 2014 by Adam lallana
Thank you so much, perfectly clear on what you've said and it helped me a lot.
