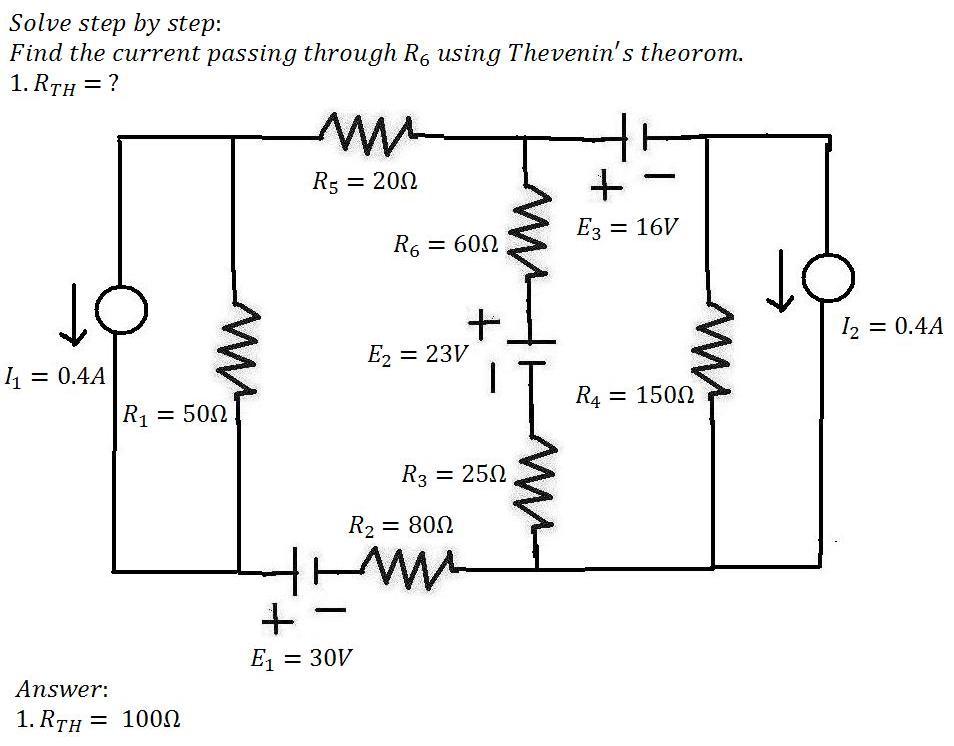

Thevenin problem

0 votes

asked Aug 5, 2015 in ELECTRICAL ENGINEERING by anonymous

1 Answer

0 votes

(1)

Step 1 :

Find the Thevinins equivalent resistance.

1.Open the load resistor.

2.Open Current Sources and Short Voltage Sources.

3.Calculate the Open Circuit Resistance. The resultant open circuit resistance is the thevenin Resistance (RTH).

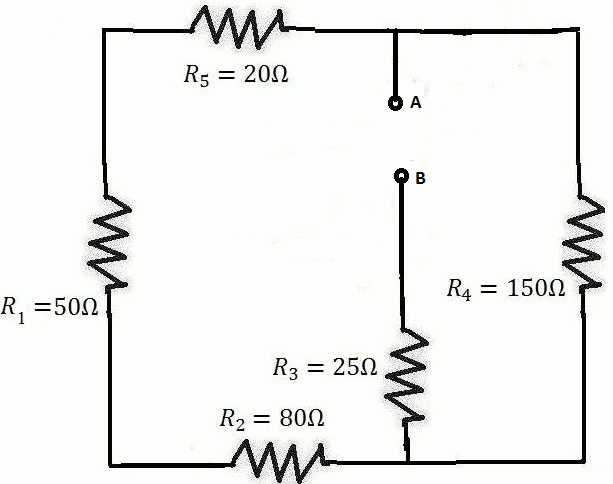

Redraw the circuit.


Observe the circuit.

The resistors image and image are in series.



Step 2 :

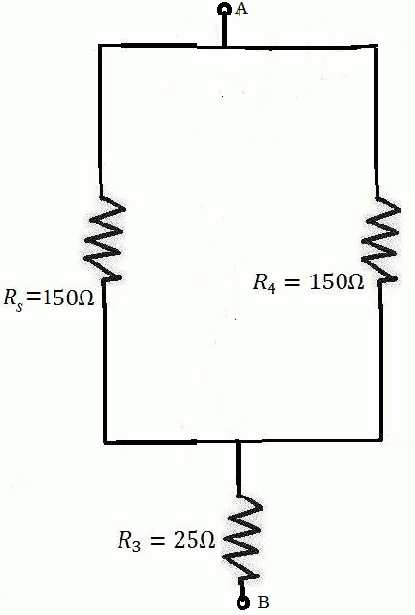

Redarw the circuit replacing with series resistor image.


The resistors image and image are in parallel.



image.

The resistors image and image are in series.


image.

Equivalent thevinins resistance is image.

Solution :

Equivalent thevinins resistance is image.

answered Aug 5, 2015 by Lucy Mentor
