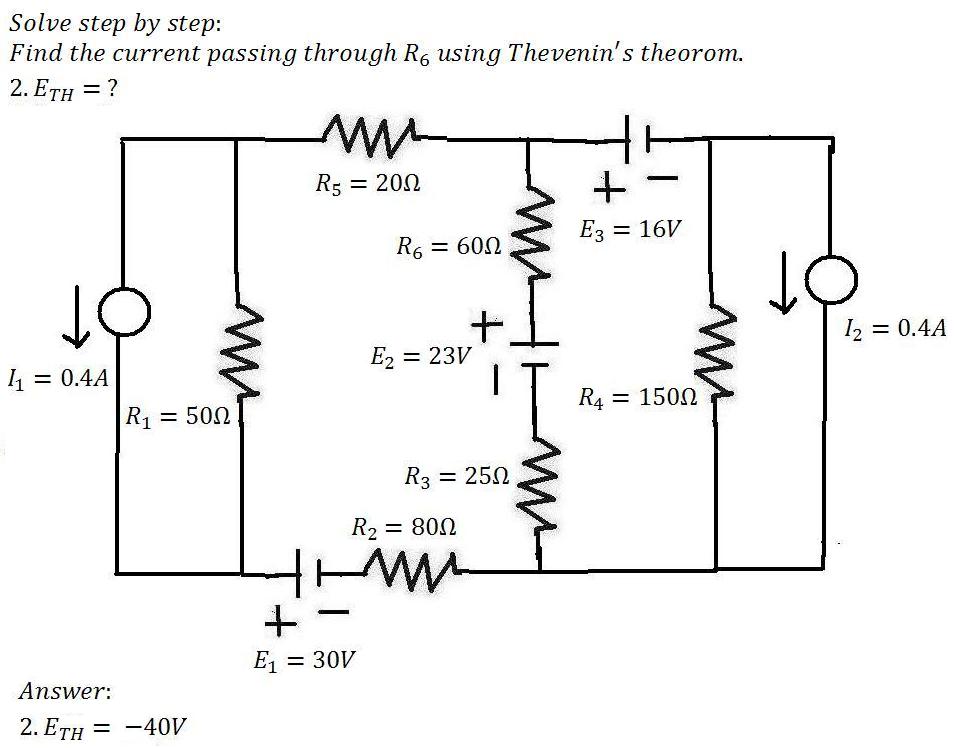

Thevenin problem

0 votes

asked Aug 5, 2015 in ELECTRICAL ENGINEERING by anonymous

1 Answer

0 votes

(2)

Step 1:

Find the Thevenin equivalent voltage.

1.Open the load resistor.

2.Calculate the Open Circuit Voltage. This is the Thevenin Voltage (VTH).

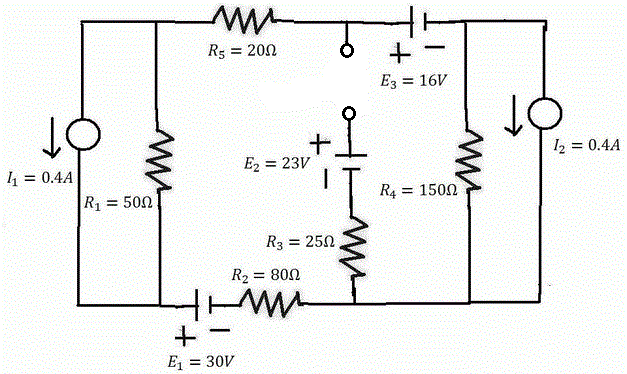

Redraw the circuit :


Use the source transformation to convert the current sources to voltage sources.

Convert the current source image to voltage source.


Convert the current source image to voltage source.


Step 2:

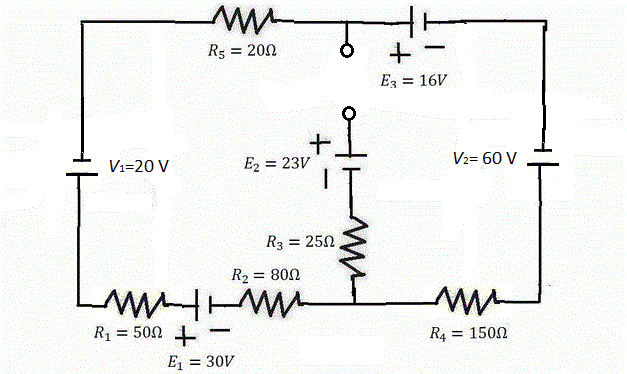

Now draw the circuit with voltage sources.


Find the loop current.

Apply KVL to the above network.


Step 3:

From the circuit :


Therefore Thevenin Voltage VTH  = - 41.5 V.

Solution :

Thevenin Voltage is VTH  = - 41.5 V.

answered Aug 5, 2015 by yamin_math Mentor
