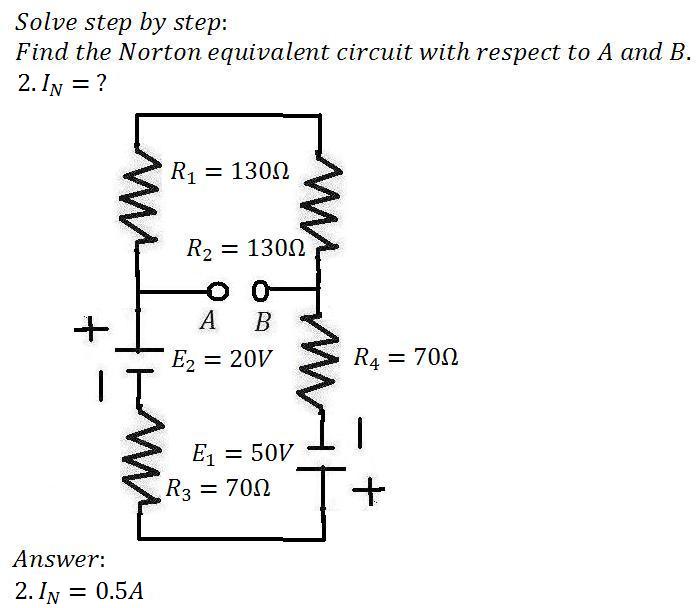

Norton equivalent

0 votes

asked Aug 9, 2015 in ELECTRICAL ENGINEERING by anonymous

1 Answer

0 votes

(2)

Step 1:

Find the Norton's short circuit current.

1. Short the load resistor.

2. Calculate the Short Circuit Current. This is the Norton Current (IN).

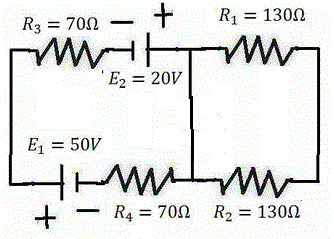

Redraw the circuit :


Resistor R1 and R2 are in series.

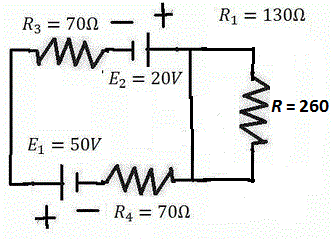

Step 2:

Now replace R1 and R2 with R.


Find the total circuit current : image.

Voltage V = 50 +20

V = 70 V

Nortons equivalent resistance is image.

( From http://www.mathskey.com/question2answer/31754/norton-equivalent ).


Step 3:

Find the Current through the resistor R.

Use the CDR (current division rule ) to find the Current through the resistor R.


Norton short circuit current is image.


Nortons current is image.

Solution :

Nortons current is image.

answered Aug 10, 2015 by justmaths Rookie
edited Aug 10, 2015 by justmaths
