Engineering

0 votes

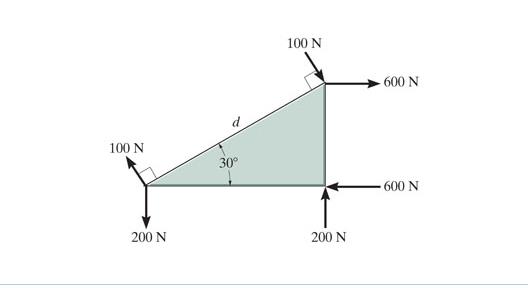

The ends of the triangular plate are subjected to three couples.
Determine the plate dimension d so that the resultant couple is 400 N⋅m clockwise.
asked Oct 20, 2016 in MECHANICAL ENGINEERING by anonymous
reshown Oct 20, 2016 by goushi

1 Answer

0 votes

Please find the solution

answered Oct 21, 2016 by anonymous
reshown Oct 21, 2016 by goushi
