0 votes

asked Jul 6, 2015 in ELECTRICAL ENGINEERING by anonymous
recategorized Jul 13, 2015 by bradely

7 Answers

0 votes

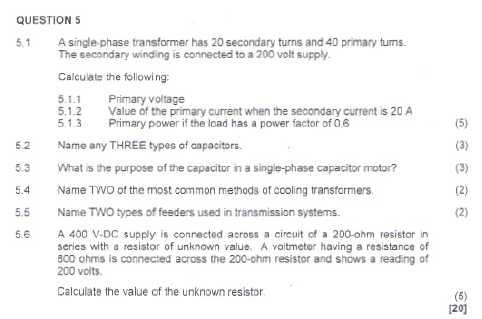

5.3)

The purpose of capacitor in a single phase capacitor motor:

Single phase induction motor is not the self starting so, to make it self start we can use capacitor.

Capacitor also provides high starting torque to run the motor.

The capacitor is used to make a single-phase motor rotate in one direction only by supplying a phase shift voltage to a starting winding on the motor.

answered Jul 7, 2015 by david Expert
edited Jul 7, 2015 by david
0 votes

5.4)

Transformer needs a cooling system. Transformers can be divided in two types as (i) dry type transformers and (ii) oil immersed transformers.

Different cooling methods of transformer are -

For dry type transformers:

Natural air cooling

Blast air cooling

For oil immersed transformers:

1) ONAN - Oil Natural Air Natural

2) ONAF - Oil Natural Air Forced

3) OFAF - Oil Forced Air Forced

4) OFWF - Oil Forced Air Forced.

answered Jul 7, 2015 by david Expert
0 votes

5.5)

Feeder is defined as lines, which connect the distribution station and distributor.

Distributor is defined as a common bus bar, which connect the service main and feeder.

The most two types of feeders used in transmission system are,

1) Radial distribution system.

2) Primary Loop distribution system.

answered Jul 7, 2015 by david Expert
edited Jul 7, 2015 by david
0 votes

5.2)

There are different types of capacitors.

Few examples of capacitors:

Dielectric Capacitor

Film Capacitor

Ceramic Capacitor

Electrolytic Capacitor.

answered Jul 7, 2015 by david Expert
0 votes

Step 1:

(5.1)

A single phase transformer has a image primary turns.

Transformer has a image secondary turns.

Secondary voltage is image V.

(5.1.1)

Find the primary voltage.

Relation between number of turns and voltage is image.

Substitute image, image and image.


The primary voltage 400 V.

Solution :

The primary voltage 400 V.

answered Jul 7, 2015 by yamin_math Mentor
0 votes

Step 1:

(5.1.2)

A single phase transformer has a image primary turns.

Transformer has a image secondary turns.

Secondary current is image A.

Find the primary current.

Relation between number of turns and voltage is image.

Substitute image, image and image.


The primary current 10 A.

Solution :

The primary current 10 A.

answered Jul 7, 2015 by yamin_math Mentor
0 votes

Step 1:

(5.1.3)

The primary current 10 A.         [From 5.1.2]

The primary voltage 400 V.       [From 5.1.1]

Power factor of primary current is image.

Primary power of the transformer is  image.


The primary power 2400 W.

Solution :

The primary power of transformer 2400 W.

answered Jul 7, 2015 by yamin_math Mentor
