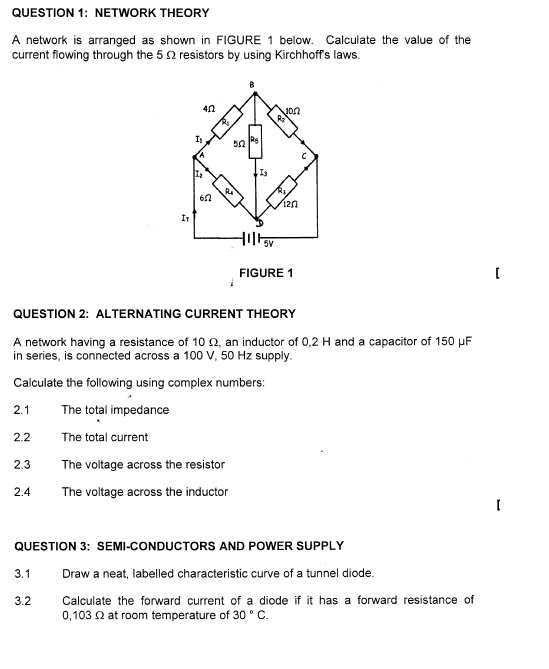

HELP23-Kirchhoff's Laws

0 votes

asked Jul 6, 2015 in ELECTRICAL ENGINEERING by anonymous
recategorized Jul 8, 2015 by bradely

6 Answers

0 votes

(3.1)

Tunnel Diode :

A tunnel diode is a highly doped semiconductor and is mainly used for low voltage high frequency switching applications.

It works on the principle of Tunneling effect.

Characteristic Curve :

When the tunnel diode is forward voltage, the current increases and reaches the peak current.

If the voltage is applied to the tunnel diode beyond the peak voltage, the current starts decreasing due to tunneling effect. This is negative resistance region. Thereafter the current after the valley point starts increasing.

In reverse bias condition, tunnel diode conducts reverse bias current.

The V-I characteristics of the Tunnel diode is

answered Jul 8, 2015 by Lucy Mentor
0 votes

Question (1)

Step 1:

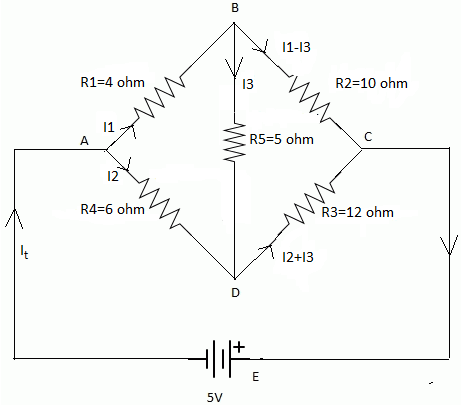

The bridge network is shown below.


Apply KVL for the loop ABDA.


Apply KVL for the loop BCDB.


Apply KVL for the loop ADCEA.


Step 2:

Now solve the three equations.

Multiply equation (1) with 2.


Subtract equation (2) from equation (4).


Multiply equation (2) with 18.


Multiply equation (3) with 12.


Add equation (6) and equation (4).


Substitute image in the above equation.


The current flowing through 5 ohms resistor is image.

Solution:

The current flowing through 5 ohms resistor is image.

answered Jul 8, 2015 by Lucy Mentor
0 votes

(2.1)

Step 1:

The resistance of the circuit is image.

The inductance of the circuit is 0.2 H.

The capacitance of the circuit is image.

The applied voltage is 100 V.

Input frequency is 50 Hz.

The elements are connected in series, hence equivalent resistance image.

Impedance due to resistor element is image.

Impedance due to inductor element is


Impedance due to capacitive element is


Equivalent impedance : image.



Solution :

Total impedance is image

answered Jul 9, 2015 by Lucy Mentor
0 votes

(2.2)

Step 1:

Find the total current.

Applied voltage is 100 v.

Total impedance of the circuit is image     (From 2.1)

Total current in the circuit is .


Total current in the circuit is image.

Solution :

Total current in the circuit is image.

answered Jul 9, 2015 by Lucy Mentor
edited Jul 9, 2015 by Lucy
0 votes

(2.3)

Step 1:

Find the voltage drop across the resistor.

Current across each element is same as they are connected in series.

Voltage drop across resistor : .


Voltage drop across the resistor : image.

Solution :

Voltage drop across the resistor : image.

answered Jul 9, 2015 by Lucy Mentor
0 votes

(2.4)

Step 1:

Find the voltage drop across the inductor.

Current across each element is same as they are connected in series.

Voltage drop across resistor : .

Impedance due to inductor element is .


Voltage drop across inductor : image.

Solution :

Voltage drop across inductor : image.

answered Jul 9, 2015 by Lucy Mentor
