Current and voltage

0 votes

asked Jul 30, 2015 in ELECTRICAL ENGINEERING by anonymous
reshown Jul 30, 2015 by bradely

1 Answer

0 votes

Step 1:

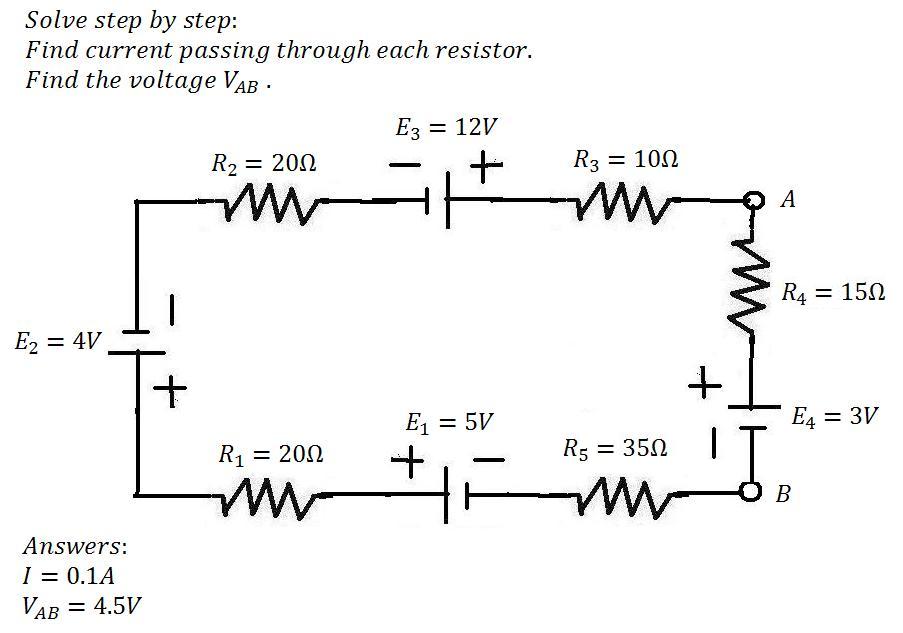

Observe the circuit,

All the resistors are in series, so the current passing through the resistors is same.

Apply KVL to the circuit.

KVL: Total voltage around a closed loop is zero.



image A.

Current passing through the circuit is 0.1 A.

Since all the resistors are in series, current passing through the each resistors in the circuit is 0.1 A.

Find the voltage across the nodes image and image i.e image.

Voltage across the nodes image and image:



image.

Thus, voltage across the nodes image and image image V.

Solution:

Current passing through the each resistors in the circuit is 0.1 A.

Voltage across the nodes image and image, image V.

answered Jul 30, 2015 by cameron Mentor
edited Jul 30, 2015 by cameron
