Phasor Diagram

0 votes

asked Dec 9, 2015 in ELECTRICAL ENGINEERING by anonymous

1 Answer

0 votes

Observe the circuit:

In a series RLC circuit contains a resistor, an inductor and a capacitor.

The source voltage image is the phasor sum made up of three components image.

If image, then the overall circuit reactance is inductive giving lagging phase angle.

The instantaneous voltage across a pure resistor, image is in-phase with current.

The instantaneous voltage across a pure inductor, image  leads the current by image.

The instantaneous voltage across a pure resistor, image lags the current by image.

Phasor diagram for the individual voltage vectors:

For resistor:

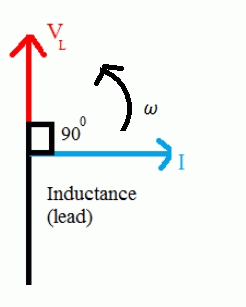

For inductor:


For capacitor:


Phasor diagram of Resultant:


answered Dec 9, 2015 by cameron Mentor
edited Dec 9, 2015 by cameron
