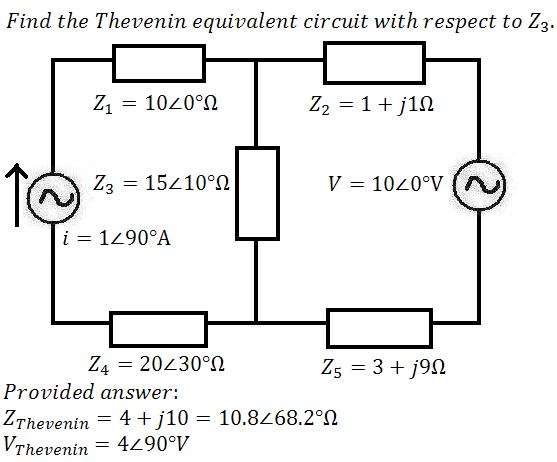

AC Thevenin

0 votes

asked Dec 16, 2015 in ELECTRICAL ENGINEERING by anonymous

1 Answer

0 votes

(1)

Step 1:

Find the Thevinins equivalent impedance.

1.Open the load resistor.

2.Open Current Sources and Short Voltage Sources.

3.Calculate the Open Circuit Resistance. This is the Thevenin impedance (ZTH).

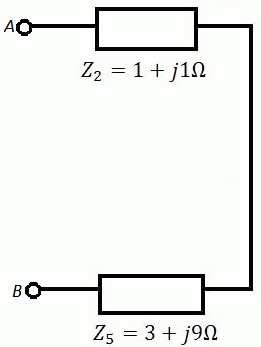

Redraw the circuit :


Step 2:

Observe the circuit:

image is in series with image.



image in polar form can be written as image.

Solution:


answered Dec 16, 2015 by Lucy Mentor
