Cartesian Vectors Problem

0 votes

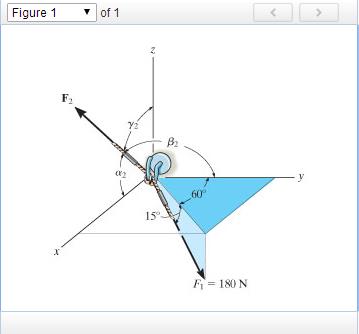

partA. If the resultant of the two forces acts along the positive x axis and has a magnitude of 600 N , determine the magnitude of F2

PartB. Determine the coordinate （α2, β2, γ2） direction angles of F2.

asked Sep 26, 2016 in MECHANICAL ENGINEERING by 503297348 Rookie
Share this question
Google+ Facebook Twitter LinkedIn Reddit

1 Answer

0 votes

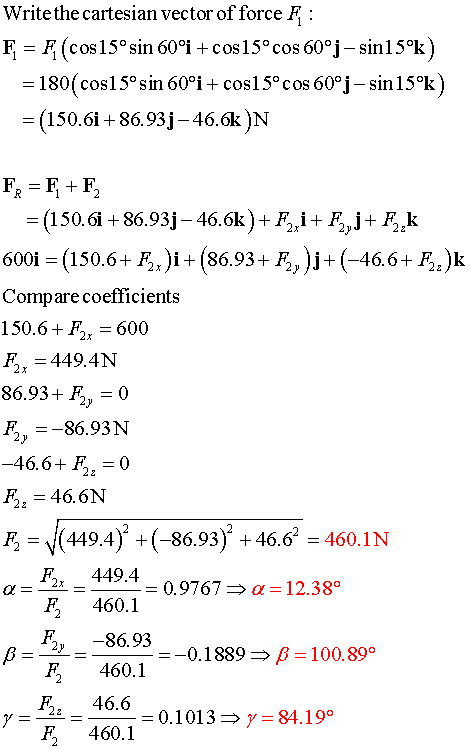

Please find the solution

answered Sep 26, 2016 by anonymous
