physics help

Question

The image produced would be:

A) real

B) virtual

C) no image is formed

The image produced would be ______ than the original object.

A) smaller

B) larger

C) the same size

D) no image is formed

The image produced would be:

A) erect

B) inverted

C) no image is formed

The image produced would be located:

A) on the same side of the mirror as the object to the left of C

B) on the same side of the mirror as the object at C

C) on the same side of the mirror as the object between F and C

D) on the opposite side of the mirror as the object

E) no image forms

Answer 1

1)

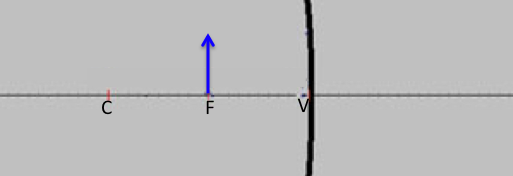

Blue arrow indicates Object position.Mirror is concave type.

F = Focal point and C = Centre of curvature.

A concave mirror will can produce

      a) A virtual & upright image occurs if the object is located between focal point and mirror.

          Image is larger than object.

      b) A real image (same size) occurs if the object is located at Centre of curvature.

      c) A real & inverted image occurs if the object is located between focus and

         Centre of curvature.Image is larger than object.

      d) No Image will be formed if the object is located at focal point.

The object is at focal point.

So No Image will be formed.

The image produced would be:

Option(C) no image is formed → Correct answer

Answer 2

2)

The image produced would be ______ than the original object.

Option (D) no image is formed → Correct answer.

Answer 3

3)

The image produced would be:

Option(C) no image is formed → Correct answer.

Answer 4

4)

The image produced would be located:

Option(E) no image forms → Correct answer
