Engineering mechanics statics 13th hibbler chapter 2 problem 140

Question

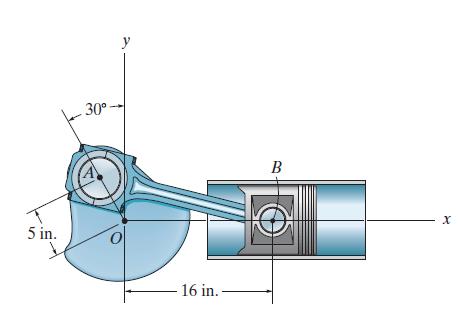

Determine the length of the connecting rod AB by first
formulating a Cartesian position vector from A to B and
then determining its magnitude.

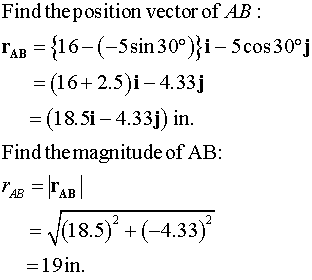

Answer 1

Therefore, the magnitude of A and B is 19 in.
