The structure shown consists of three bars pinned 9 m r at point A

0 votes

The structure shown consists of three bars pinned 9 m r at point A, and with socket supports at points B с.and D. Force Facts in the-y direction. If F-3 kN, determine the force supported by each member.

asked Mar 30 in MECHANICAL ENGINEERING by anonymous

1 Answer

0 votes

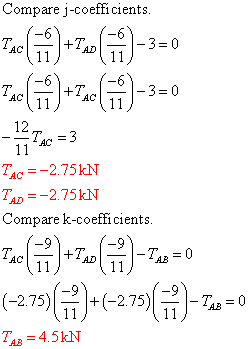

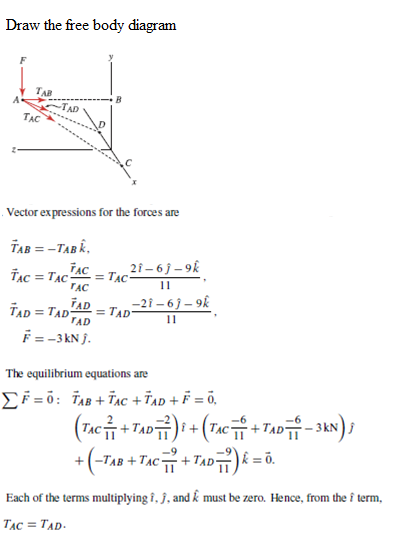

Please find the solution.

answered Apr 2 by homeworkhelp Mentor
reshown Apr 2 by bradely
