Engineering mechanics 7th Merriam 4.73P

0 votes

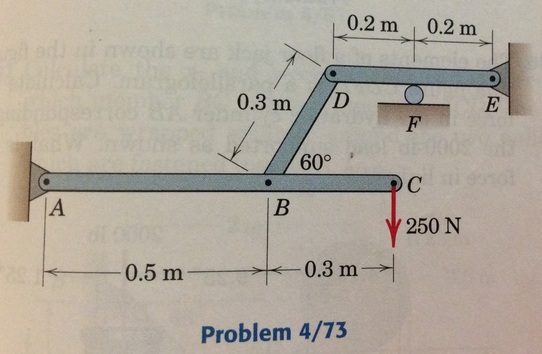

Determine the reaction at the roller F for the frame loaded as shown.

forces-equilibrium
moments
roller-supports

asked Jul 14, 2015 in MECHANICAL ENGINEERING by anonymous

Share this question

Google+ Facebook Twitter LinkedIn Reddit

Please log in or register to add a comment.

Please log in or register to answer this question.

1 Answer

0 votes

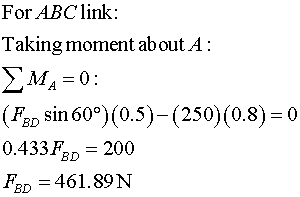

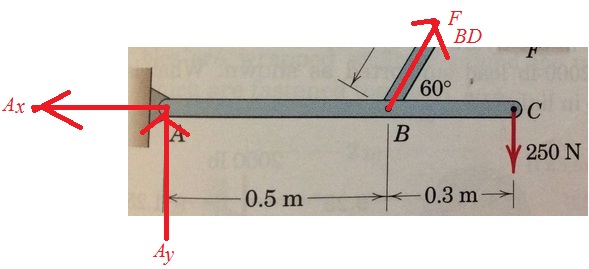

Draw the free body diagram of the ABC link:

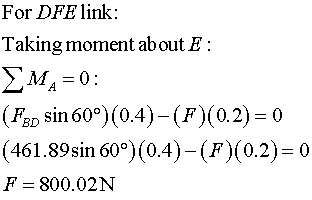

Draw the free body diagram of the DFE link:

Thus, the reaction at F is 800.02 N

answered Jul 17, 2015 by anonymous
