Engineering mechanics statics 13th hibbler chapter 4 problem 27

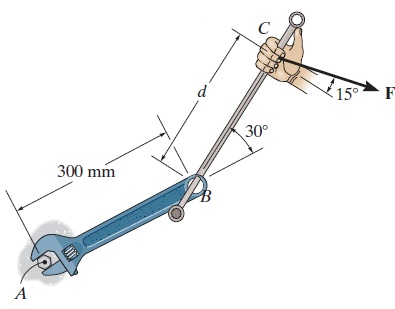

The connected bar BC is used to increase the lever arm of the crescent wrench as shown. If the applied force is F = 200 N and d = 300 mm , determine the moment produced by this force about the bolt at A .

asked Aug 4, 2015 in MECHANICAL ENGINEERING by anonymous

Share this question

1 Answer

Recent Visits

Most popular tags

Engineering mechanics statics 13th hibbler chapter 4 problem 27

Please log in or register to add a comment.

Please log in or register to answer this question.

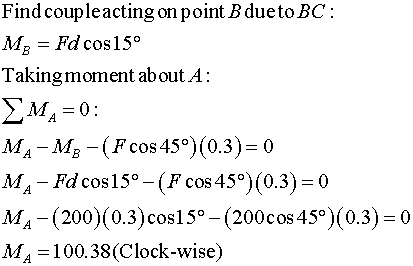

1 Answer

Please log in or register to add a comment.
