Engineering mechanics statics 13th hibbler chapter 3 problem 41

0 votes

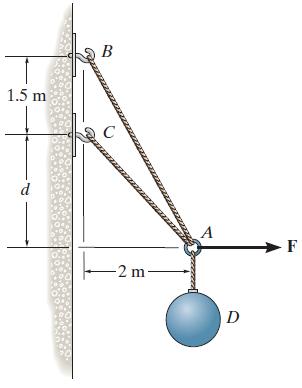

Determine the forces in cables AC and AB needed to hold the 20-kg ball D in equlibrium. Take F = 300 N and
d = 1 m.

asked Aug 4, 2015 in MECHANICAL ENGINEERING by anonymous
Share this question
Google+ Facebook Twitter LinkedIn Reddit

1 Answer

0 votes

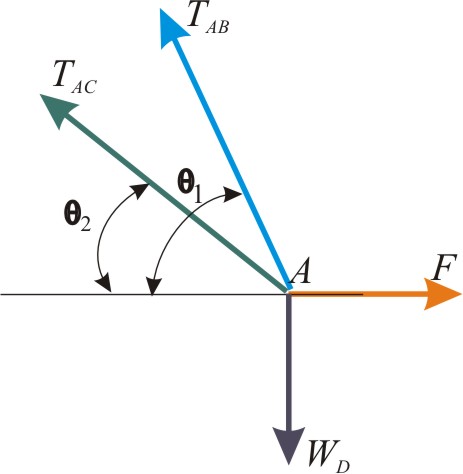

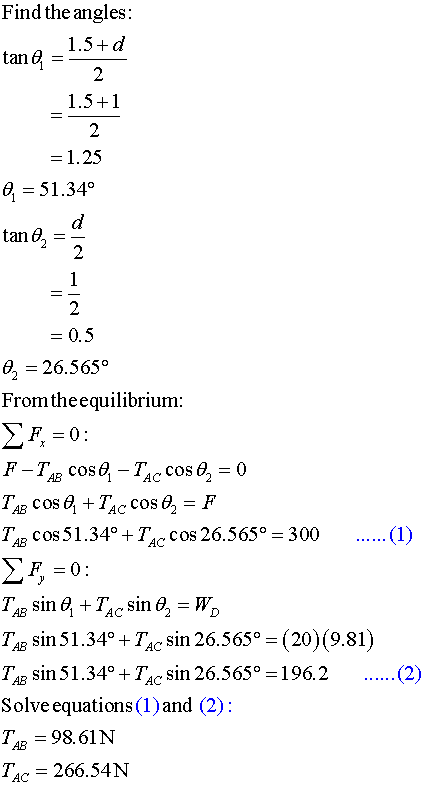

Draw the free body diagram:

answered Aug 7, 2015 by Thomas Apprentice
