Engineering mechanics statics 13th hibbler chapter 2 problem 40

Determine the magnitude of the resultant force
and its direction theta, measured counterclockwise from the
positive x axis.

asked Aug 1, 2015 in MECHANICAL ENGINEERING by anonymous

Share this question

1 Answer

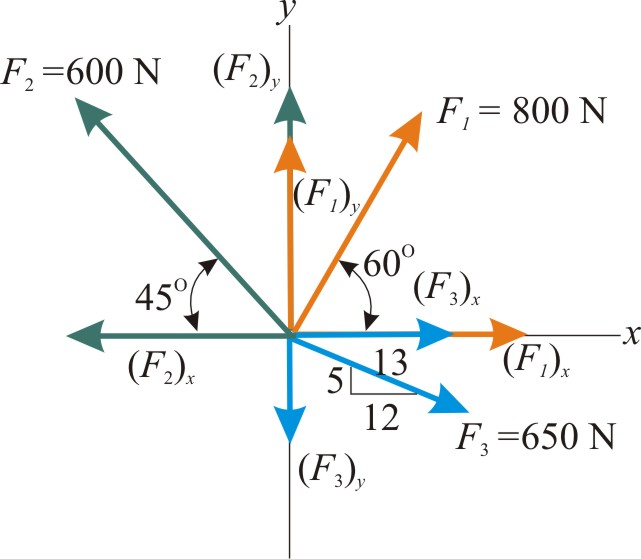

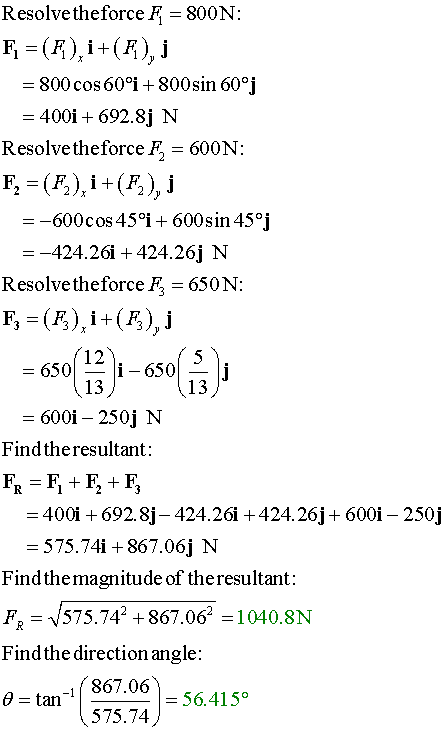

Draw the resolving forces diagram:

answered Aug 1, 2015 by Thomas Apprentice
