Beer-Vector-Mechanics-for-Engineers-Statics-and-Dynamics-10th, 2-111P

0 votes

A transmission tower is held by three guy wires attached to a pin
at A and anchored by bolts at B, C, and D. If the tension in wire
AB is 630 lb, determine the vertical force P exerted by the tower
on the pin at A.

asked Jul 25, 2015 in MECHANICAL ENGINEERING by anonymous

1 Answer

0 votes

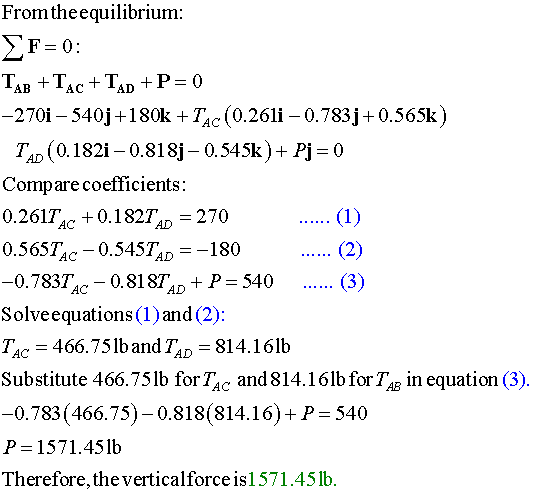

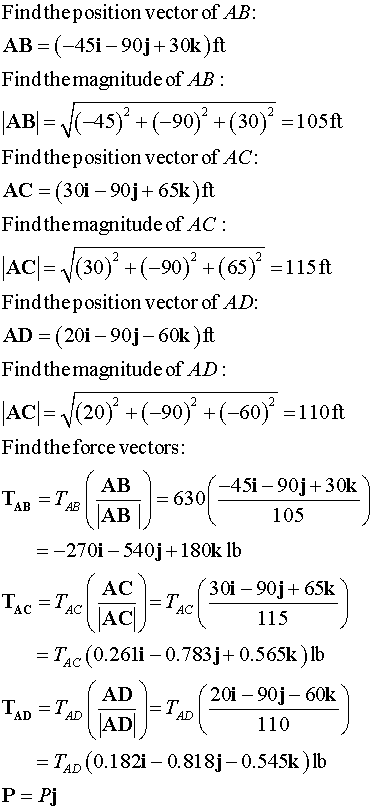

Draw the free body diagram:

answered Jul 29, 2015 by david Expert
